Radar Module/

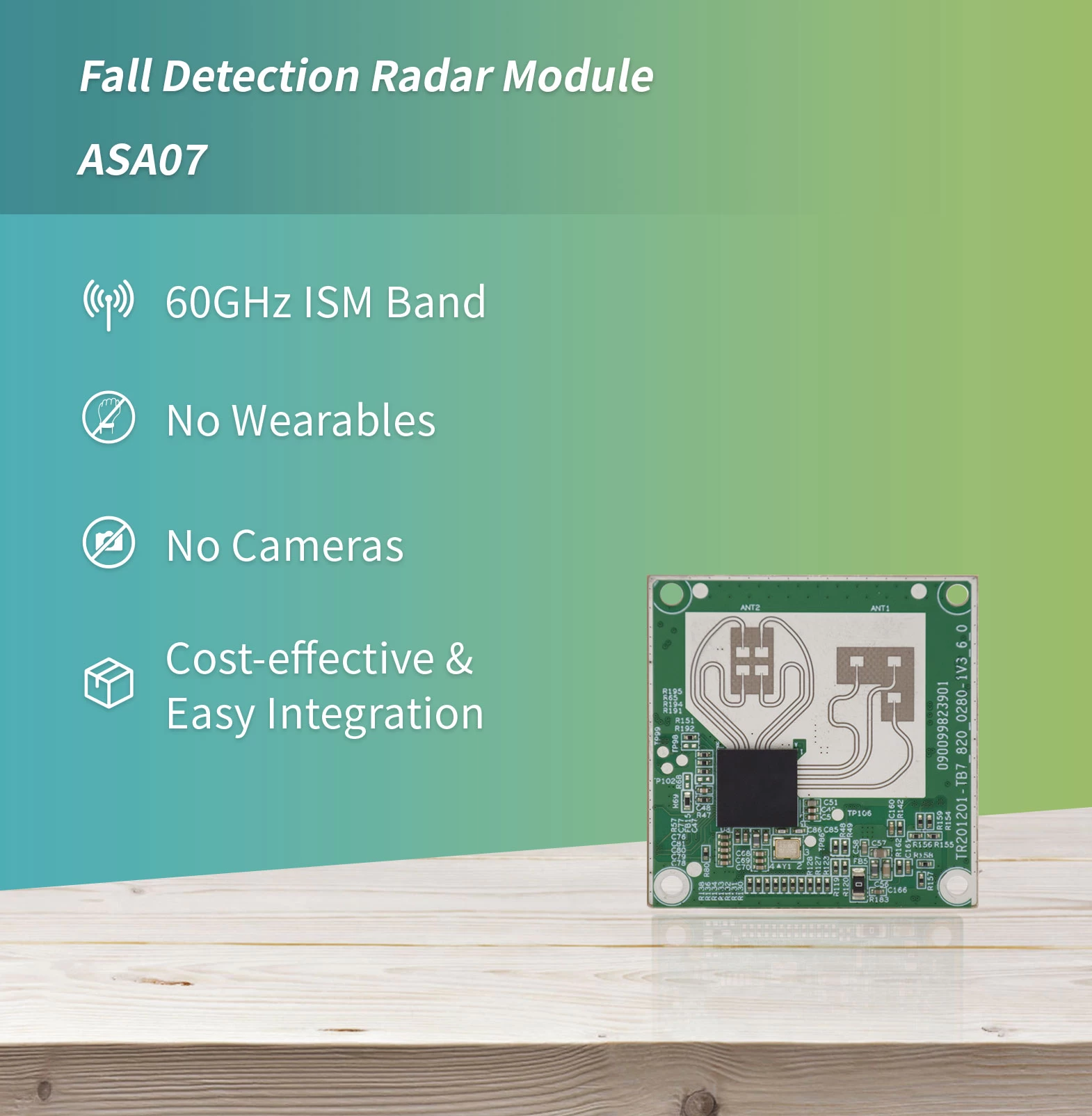

Fall Detection Radar Module ASA07

Model:ASA07

Functions:Fall & Presence Detection,
 Motion & Motionless,
 Heat-map, Target Trajectory & Speed

Modulation Mode:FMCW

Transmit Frequency:60GHz

Transceiver Channel:3TX/ 4RX

Powered by:5V DC / 2A

Detection Distance:7m (23ft)

Beamwidth (azimuth):-45°~45°

Beamwidth (pitch):-45°~45°

Communication interface:UART

Power Consumption:2.5W

Dimensions (L*W):45*45mm (1.8*1.8in)

Module Weight:8g

  • Product Details



ASW02, ASW05 and ASA07 series are mmWave radar sensors that are ideal for applications such as fall detection, heart rate and respiratory rate detection as well as sleep monitoring. Featured by designs of FMCW modulation with high complexity and performance, along with advanced radar algorithm accompanied by deep machine learning, this line of radar modules provides excel user experiences with great AOP.





FunctionsFall & Presence Detection, Motion & Motionless, Heat-map, Target Trajectory & Speed
Modulation ModeFMCW
Transmit Frequency60GHz
Transceiver Channel3TX/ 4RX
Powered by5V DC / 2A
Detection Distance7m (23ft)
Beamwidth (azimuth)-45°~45°
Beamwidth (pitch)-45°~45°
Communication interfaceUART
Power Consumption2.5W
Dimensions (L*W)45*45mm (1.8*1.8in)
Module Weight8g
