Elderly Care/

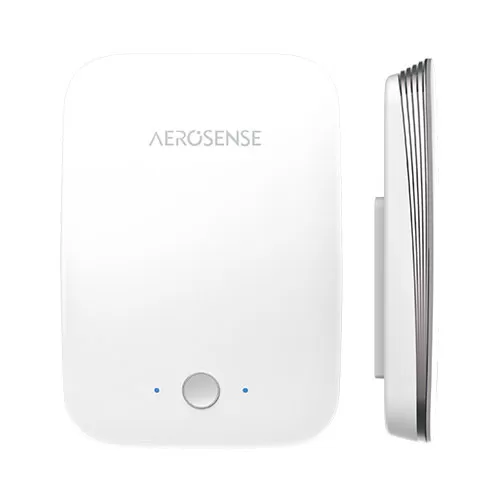

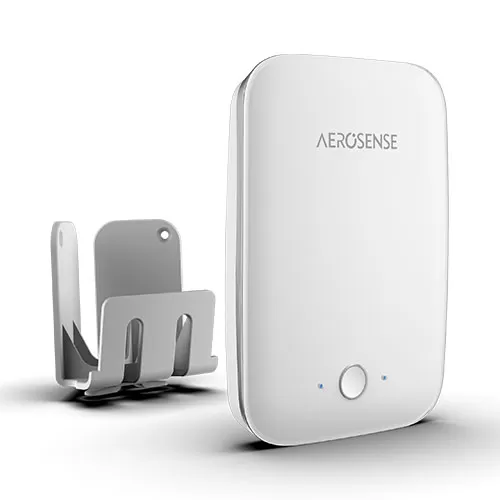

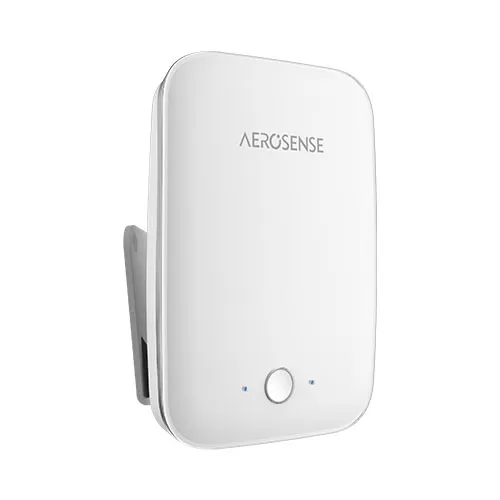

Aerosense Assure Elderly Care Sensor

Radar typeFMCW
Frequency band60GHz (FCC certified)
Detection rangeUp to 7m (23ft)
Effective field of view (horizontal)90°
Effective field of view (vertical)90°
System powerDC 5V/2A Max
Network connectionWiFi
Operating temprature-10 ~ 50°C (14 ~ 122°F)
IP ratingIP54
Dimensions148*105*24mm (5.8*4.1*0.9in)
Weight of the unit (approx.)156g
Installation height1.4 ~ 2.2m (4.5 ~ 7.2ft)
Communication protocolSDK / API

  • Product Details



Helping increase safety and reduce running costs for senior living communities and health systems.

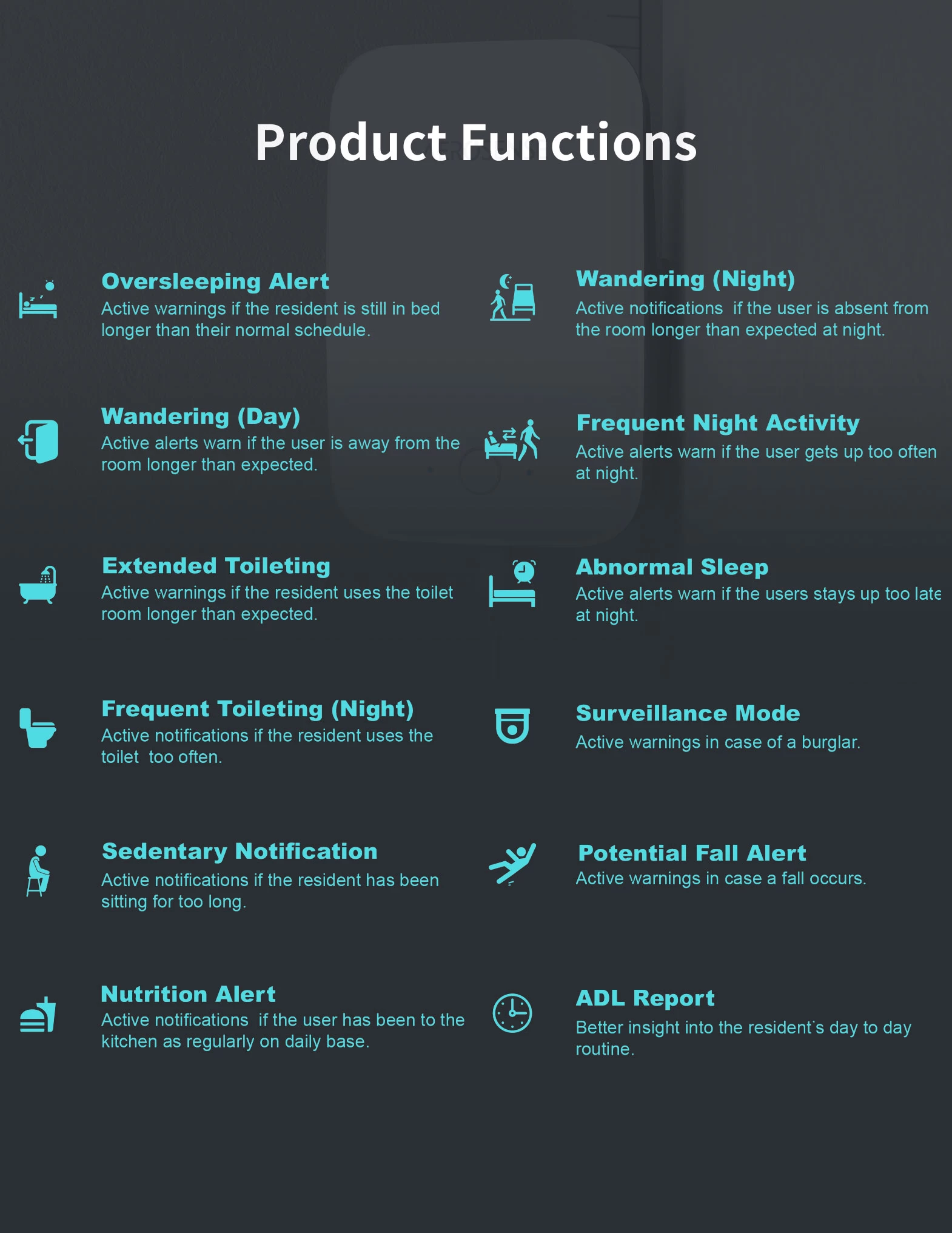

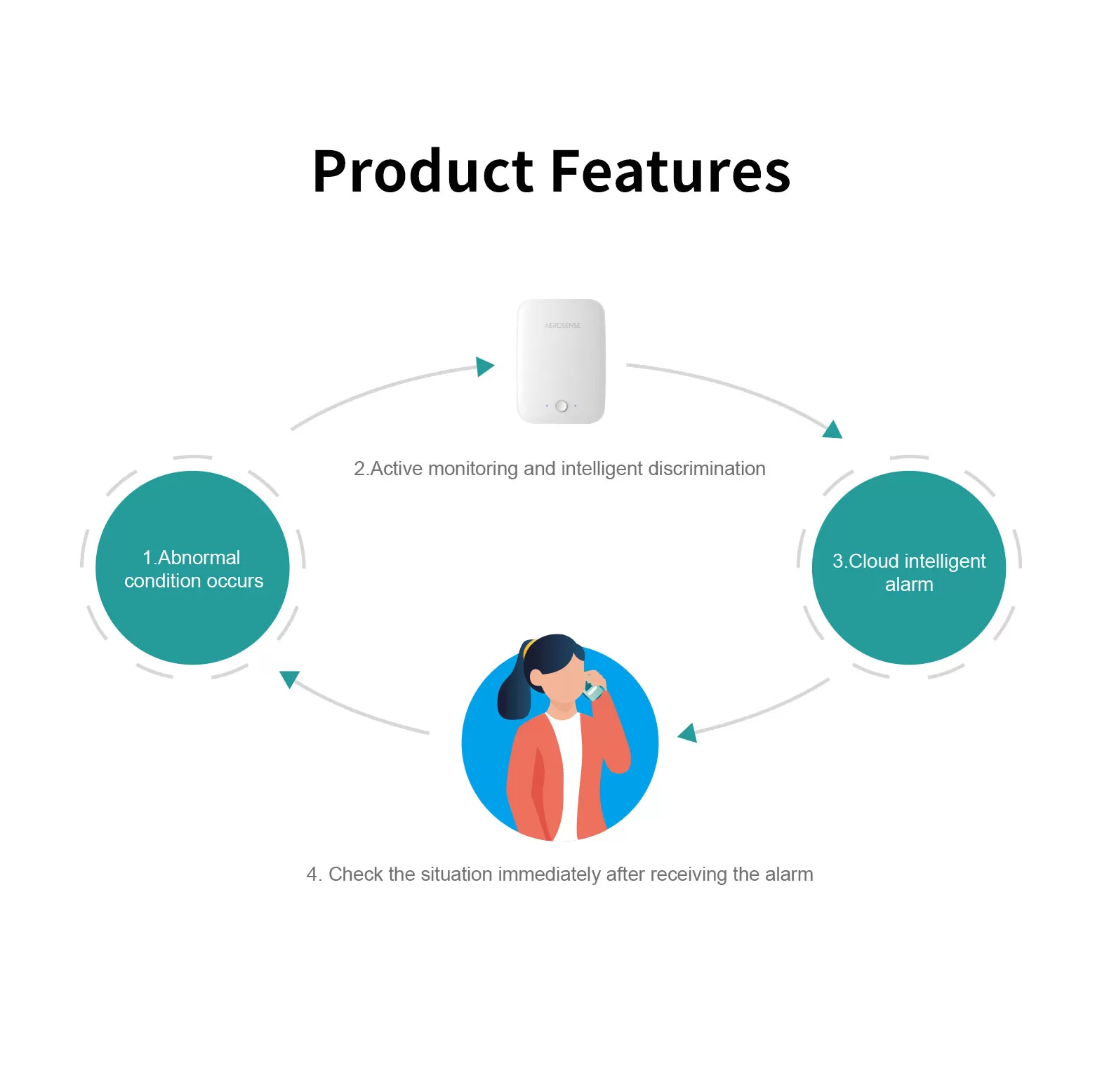

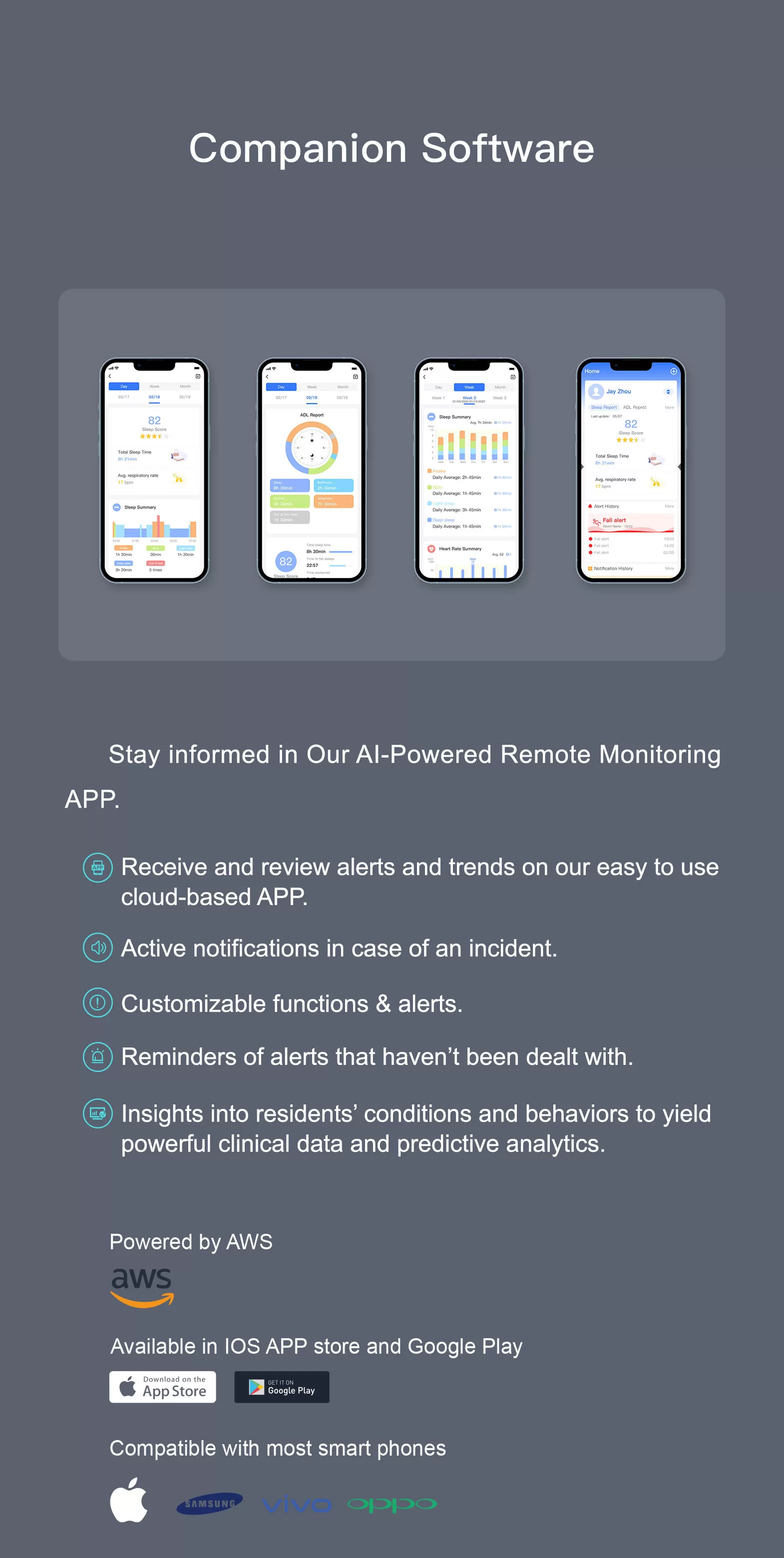

A smart and contactless monitoring and early warning device. Designed to screen for high-hazardous risks of day to day living for senior citizens. Get alerts for potential falls, wandering, oversleeping, inactivity, and more! In the case of an incident, an alert is sent to emergency contacts through phone calls, text messages, or APP notifications. Generate data-based analytic health reports that help in the early diagnosis of diseases.



Radar typeFMCW
Frequency band60GHz (FCC certified)
Detection rangeUp to 7m (23ft)
Effective field of view (horizontal)90°
Effective field of view (vertical)90°
System powerDC 5V/2A Max
Network connectionWiFi
Operating temprature-10 ~ 50°C (14 ~ 122°F)
IP ratingIP54
Dimensions148*105*24mm (5.8*4.1*0.9in)
Weight of the unit (approx.)156g
Installation height1.4 ~ 2.2m (4.5 ~ 7.2ft)
Communication protocolSDK / API
