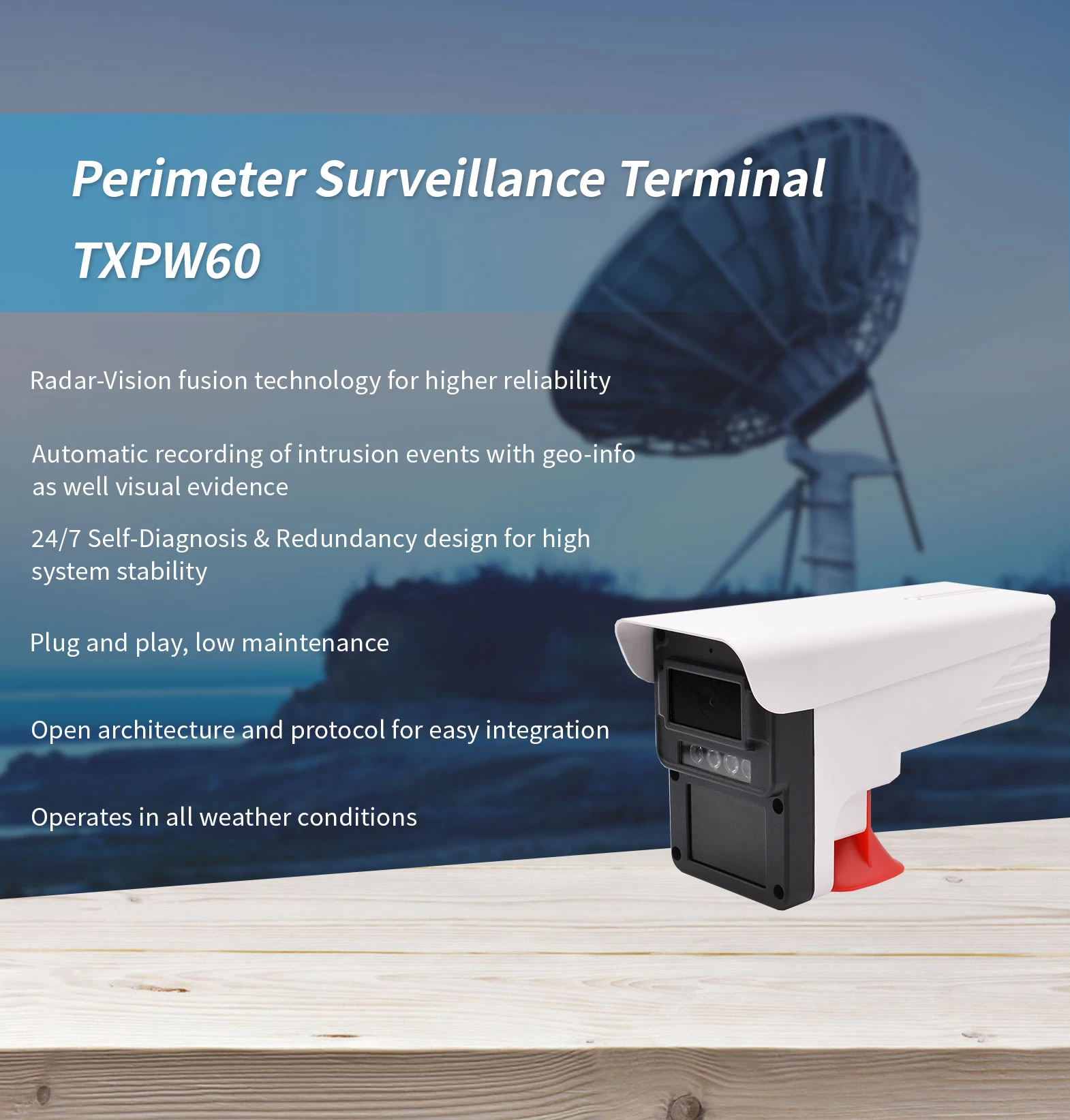

Perimeter Surveillance Terminal TXPW60

ModelTXPW60
Detection Rangeup to 60m
Target ClassificationHumans, Vehicles, Animals
Target Velocity0.05~20m/s
Detection AccuracyHigh detection accuracy with low false alert rate
(up to 99.99% accurate detection against 1 false alert weekly in lab condition)
Simultaneous Tracking8 targets
Deep Learning AlgorithmSupported
System Self-diagnoseSupported
Alarm ZonesUp to 4 customized alarm zones with different security levels.
Line-cut Alarm Supported
CamerasH.264 HD 2MP 1920 x 1080 @25fps IP Camera, 1/3”CMOS, 0.01lux, F1.6
RadarFMCW MIMO RADAR 60GHz, FOV120°
Video/image CaptureFull HD 1080p daylight and lowlight
Strobe Siren Alarm100 dB
BracketUniversal Type
Communication InterfaceRJ45
Alarm OutputNO/NC Relay Output(0.5A/125AC) *1
ProtocolTCP/IP
InstallationPower and Ethernet required. 2.5m above the ground.
Power SupplyDC 12V < 3A/ Power over Ethernet (POE)
Power Consumption20 W
IP RatingIP66
Working Temprature-20 ~ 60°C
Dimension219*126*89mm
Weight0.8kg
CertificationCE, FCC
  • Product Details

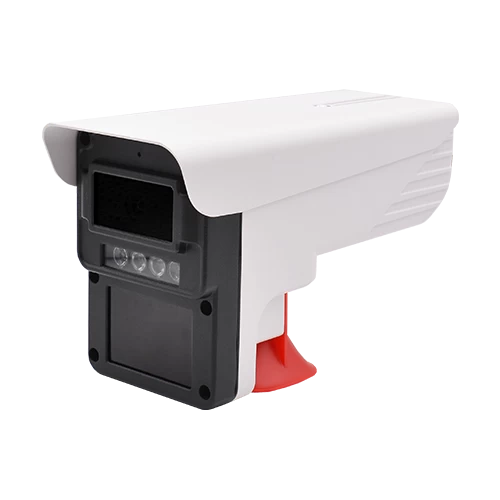

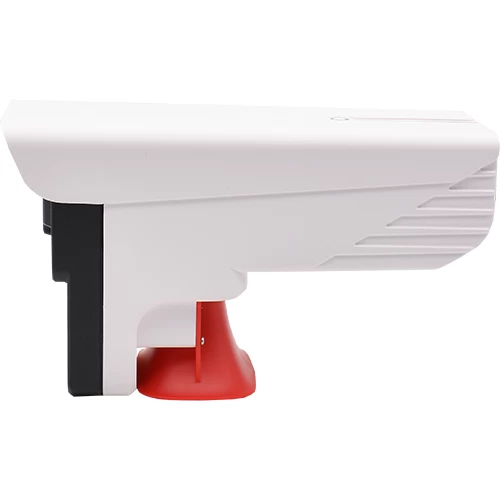

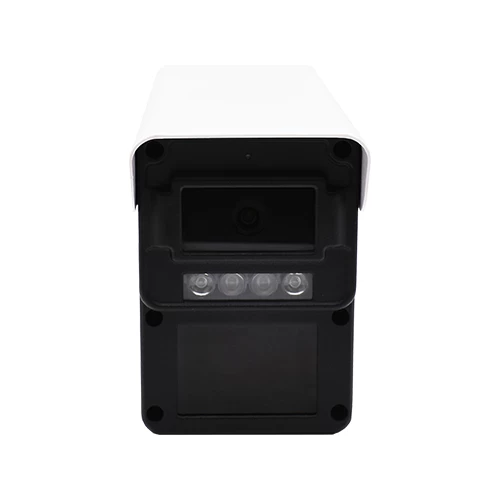

The TXPL- and TXPW- series intelligent perimeter surveillance terminals adopt state-of-the-art multi-sensor technology and multi-stage decision making hierarchy to maximize situational awareness. The terminal comes with built-in radar and cameras, plus smart target recognition and classification, all inside a single unit. The terminal is reliable with highly accurate detection of intrusions and very low false alarm rate. By adopting a software framework based on machine learning, it is able to rapidly adapt to the various environmental changes of the installation site, ensuring system accuracy and optimal user experience. It can be used for perimeter security of parking lots, data centers, commerical buildings, and important infrastructures in a variety of settings.









ModelTXPW60
Detection Rangeup to 60m
Target ClassificationHumans, Vehicles, Animals
Target Velocity0.05~20m/s
Detection AccuracyHigh detection accuracy with low false alert rate
(up to 99.99% accurate detection against 1 false alert weekly in lab condition)
Simultaneous Tracking8 targets
Deep Learning AlgorithmSupported
System Self-diagnoseSupported
Alarm ZonesUp to 4 customized alarm zones with different security levels.
Line-cut Alarm Supported
CamerasH.264 HD 2MP 1920 x 1080 @25fps IP Camera, 1/3”CMOS, 0.01lux, F1.6
RadarFMCW MIMO RADAR 60GHz, FOV120°
Video/image CaptureFull HD 1080p daylight and lowlight
Strobe Siren Alarm100 dB
BracketUniversal Type
Communication InterfaceRJ45
Alarm OutputNO/NC Relay Output(0.5A/125AC) *1
ProtocolTCP/IP
InstallationPower and Ethernet required. 2.5m above the ground.
Power SupplyDC 12V < 3A/ Power over Ethernet (POE)
Power Consumption20 W
IP RatingIP66
Working Temprature-20 ~ 60°C
Dimension219*126*89mm
Weight0.8kg
CertificationCE, FCC

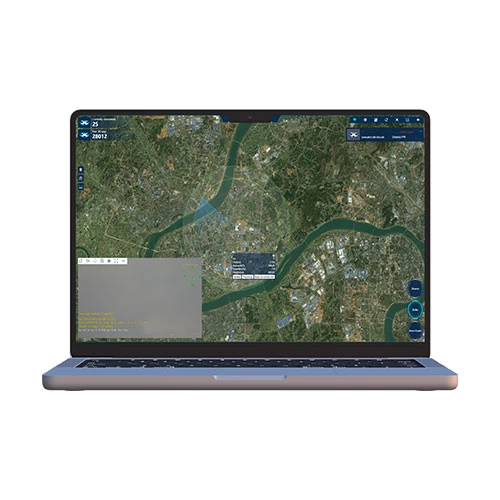

The perimeter security alarm software is to manage multiple perimeter surveillance terminals, AI-video boxes with security radar and video surveillance cameras, integrated smart algorithm. The perimeter security alarm management platform software is the hub of the whole perimeter security system. When the intruder enters the alarm zone area, the radar sensor delivers the intrusion location through active detection, accurately determines the type of intrusion with AI vision, records video of the intrusion process, and reports to the perimeter security alarm management platform, so active, three- dimensional monitoring and early warning of the perimeter is addressed.

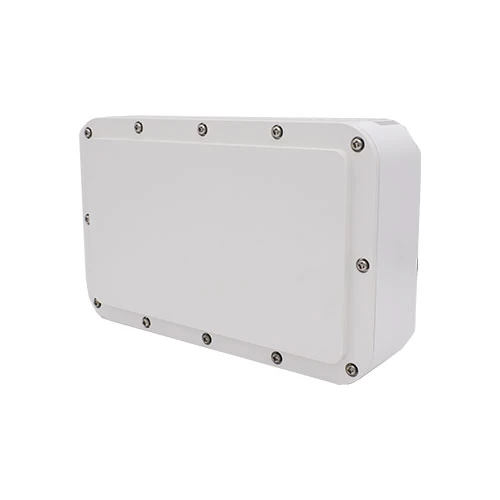

Smart radar AI-video perimeter security system can work with the security system in the market including CCTV and Alarm System. The perimeter surveillance terminals and smart AI boxes supports ONVIF & RTSP, also comes with alarm outputs like relay and I/O. Besides, the SDK/API is available for third party security platform integration.
