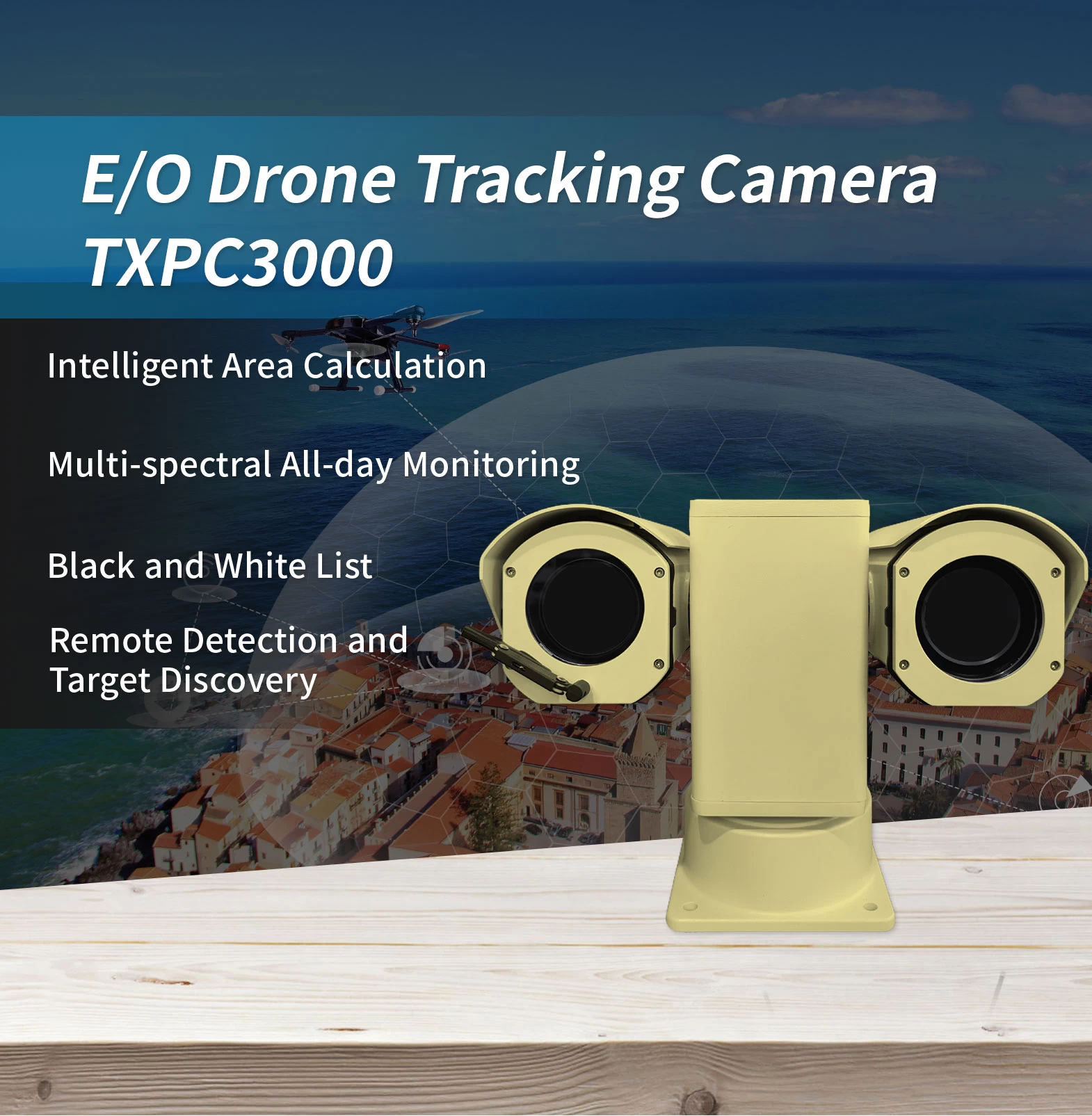

E/O Tracking Camera TXPC3000

ModelTXPC3000
Monitoring DistanceHD Camera3000~5000m
Thermal CameraHuman (1.8m×0.5m)Vehicle (2.3m×2.3m)
Detection4200m12000m
Recognition1400m3000m
Identification700m1500m
Thermal DetectorDetectorUncooled microbolometer focal plane array (Vox)
Pixel640×512
Spectral Range8~14μm
NETD≤50mK@F1.0, 300K
Image ProcessDDE, pseudo color
Thermal LensFocal Length30~150mm, 5xzoom
FOV4.2°×3.3°~20.6°×16.5°
F ValueF1.0~F1.2
Lens ControlE-zoom, e-focus, auto focus
HD CameraSensor Type1/1.8′′ Progressive Scan CMOS
Coding FormatH.264/H.265
Video Resolution25fps(2688×1520), support dual stream
Camera controlAGC, auto balance, auto backlight compensation, 3D digital noise reduce
HD LensFocal Length15.6~500mm, 32×
FOV0.8°~25.6°
Lens ControlE-zoom, e-focus, auto focus, auto iris
InterfacePower SupplyWide range waterproof power adapter, AC90-295V, power consumption ≤180W
Network Interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsTemperatureWorking -25℃~+55℃(-40℃~+65℃ optional), Storage -40℃~+65℃
Protection GradeIP66
  • Product Details



The optoelectronic tracking device has a built-in high-definition visible light through fog network camera plus a laser infrared fill light, built-in intelligent target detection and tracking algorithm, and realizes 24-hour uninterrupted target recognition and tracking in visible light, low illumination, severe haze weather, and nighttime . The fuselage is made of high-strength shock-absorbing alloy die-casting shell, and the overall three-proof spraying, heat insulation, high temperature and cold resistance, impact resistance, corrosion resistance, and good wind resistance and shock absorption performance.







ModelTXPC3000
Monitoring DistanceHD Camera3000~5000m
Thermal CameraHuman (1.8m×0.5m)Vehicle (2.3m×2.3m)
Detection4200m12000m
Recognition1400m3000m
Identification700m1500m
Thermal DetectorDetectorUncooled microbolometer focal plane array (Vox)
Pixel640×512
Spectral Range8~14μm
NETD≤50mK@F1.0, 300K
Image ProcessDDE, pseudo color
Thermal LensFocal Length30~150mm, 5xzoom
FOV4.2°×3.3°~20.6°×16.5°
F ValueF1.0~F1.2
Lens ControlE-zoom, e-focus, auto focus
HD CameraSensor Type1/1.8′′ Progressive Scan CMOS
Coding FormatH.264/H.265
Video Resolution25fps(2688×1520), support dual stream
Camera controlAGC, auto balance, auto backlight compensation, 3D digital noise reduce
HD LensFocal Length15.6~500mm, 32×
FOV0.8°~25.6°
Lens ControlE-zoom, e-focus, auto focus, auto iris
InterfacePower SupplyWide range waterproof power adapter, AC90-295V, power consumption ≤180W
Network Interface1×10Base-T/100Base-TX, RJ45
Environment indicatorsTemperatureWorking -25℃~+55℃(-40℃~+65℃ optional), Storage -40℃~+65℃
Protection GradeIP66







Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.





Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
