Drone Defense/

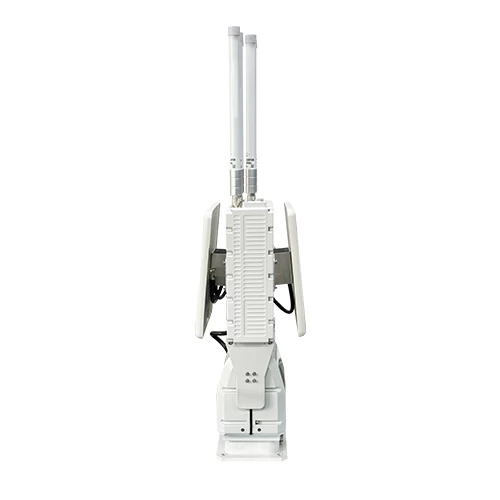

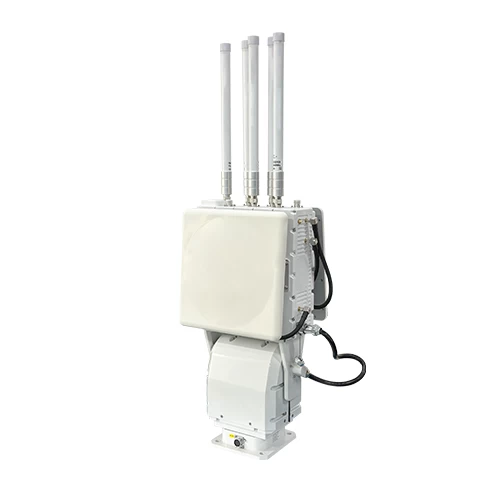

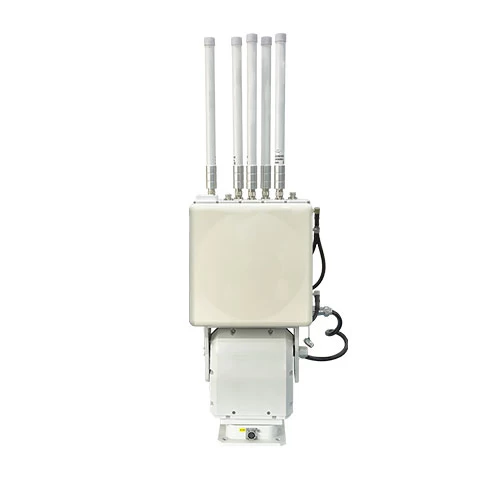

Drone RF Detector & Jammer TXPJ2000

ModelTXPJ2000
Detection receiver frequency range100KHz~6GHz
Real-time bandwidth100MHz
Interference bands0.4GHz (optional)
0.9GHz(standard)
1.2GHz (optional)
1.6GHz (standard)
5.2GHz(optional)
2.4GHz (standard)
5.8GHz (standard)
Detection distance≥2KM (1.2mile)
Counter distance≥1.5KM (0.9mile)
Horizontal detection angle0° ~ 360°
Maximum power consumption600W
Position systemGPS
Communication InterfaceRJ45
Working temperature-40 ~ 70℃ (-40 ~ 158℉)
Storage temperature-40 ~ 85℃ (-40 ~ 185℉ )
Weight25KG (55.12Ib)
Size326*240*645mm
  • Product Details



Based on smart RF scan technology, TXPJ1000/2000 can passively perceive the characteristics of drone signals, identify and locate drones. It can also learn drone signals independently without relying on databases to identify suspected drones,and then countermeasures can be made. With unattended operation mode, integrated detecting and jamming, it can stop black flying drones in multiple sorties at the same time.The unit itself is compact designed and easy to use.

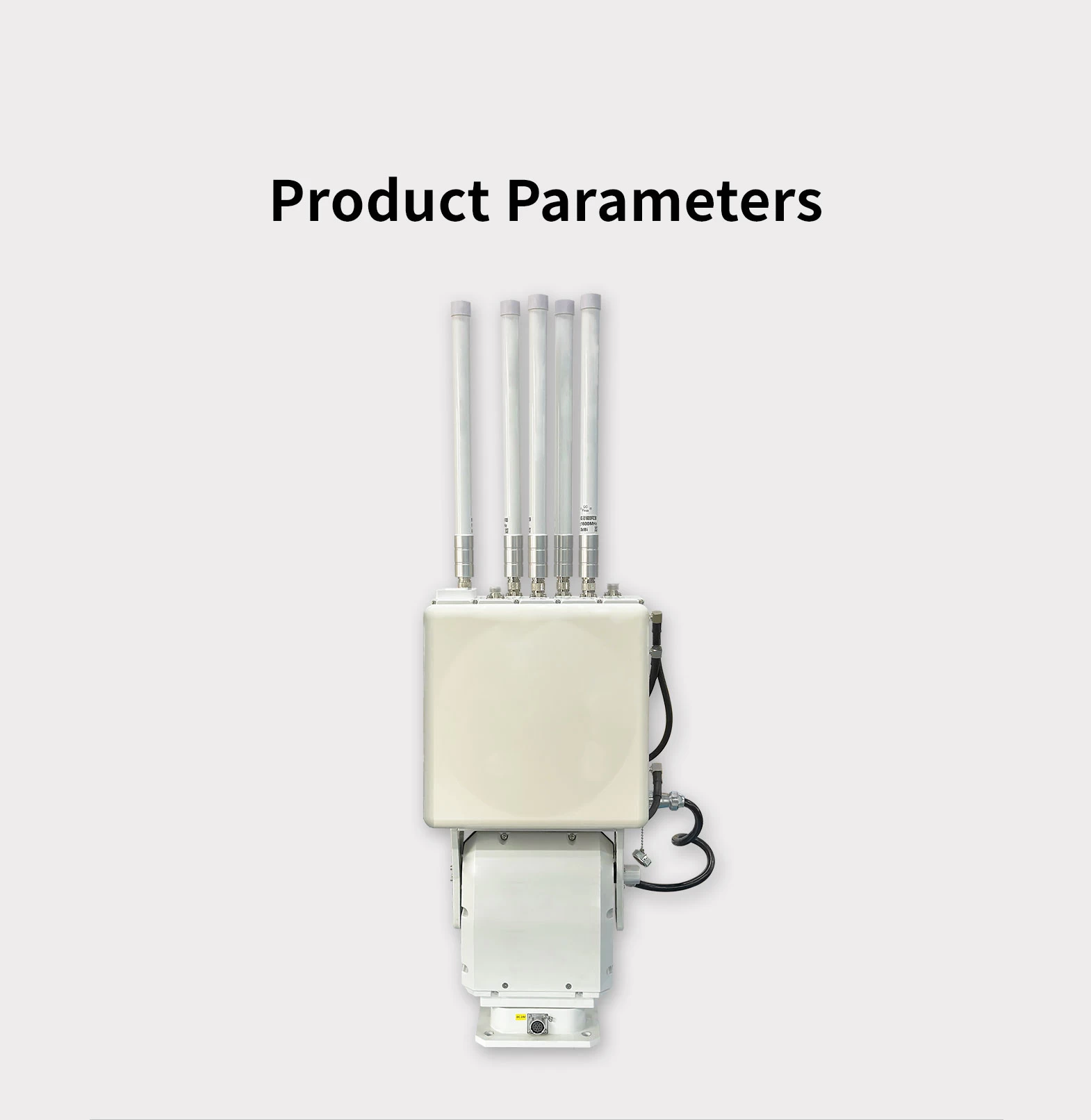

ModelTXPJ2000
Detection receiver frequency range100KHz~6GHz
Real-time bandwidth100MHz
Interference bands0.4GHz (optional)
0.9GHz(standard)
1.2GHz (optional)
1.6GHz (standard)
5.2GHz(optional)
2.4GHz (standard)
5.8GHz (standard)
Detection distance≥2KM (1.2mile)
Counter distance≥1.5KM (0.9mile)
Horizontal detection angle0° ~ 360°
Maximum power consumption600W
Position systemGPS
Communication InterfaceRJ45
Working temperature-40 ~ 70℃ (-40 ~ 158℉)
Storage temperature-40 ~ 85℃ (-40 ~ 185℉ )
Weight25KG (55.12Ib)
Size326*240*645mm



Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.





Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
