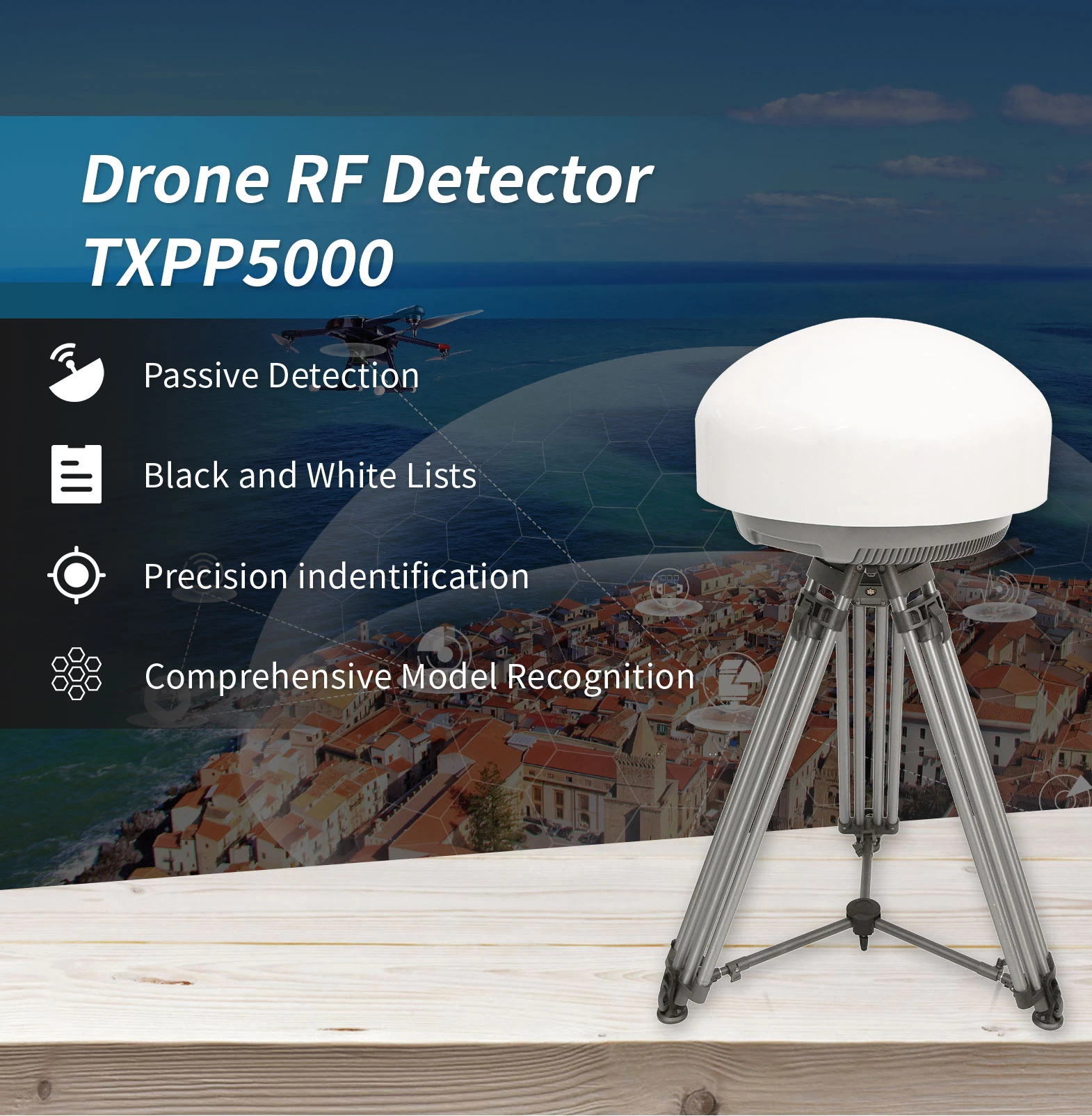

Drone RF Detector TXPP5000

ModelTXPP5000
Detection receiver frequency range300MHz~6000MHz
Detect angleHorizontal angle 360°
Detect range≥5km
Azlmuth accuracy of detection≤3°(RMS)
Location accuracy±5m
Response time≤2s
Continuously working time24H*7
Communication modeRj45 interface TCP / IP protocol
Power Consumption≤90w
Size600x600x400mm
Weight≤25kg (Tripod Excluded)
Working temperature-40°~+70°
Storage temperature-45°~+70°
IP RatingIP 66
  • Product Details

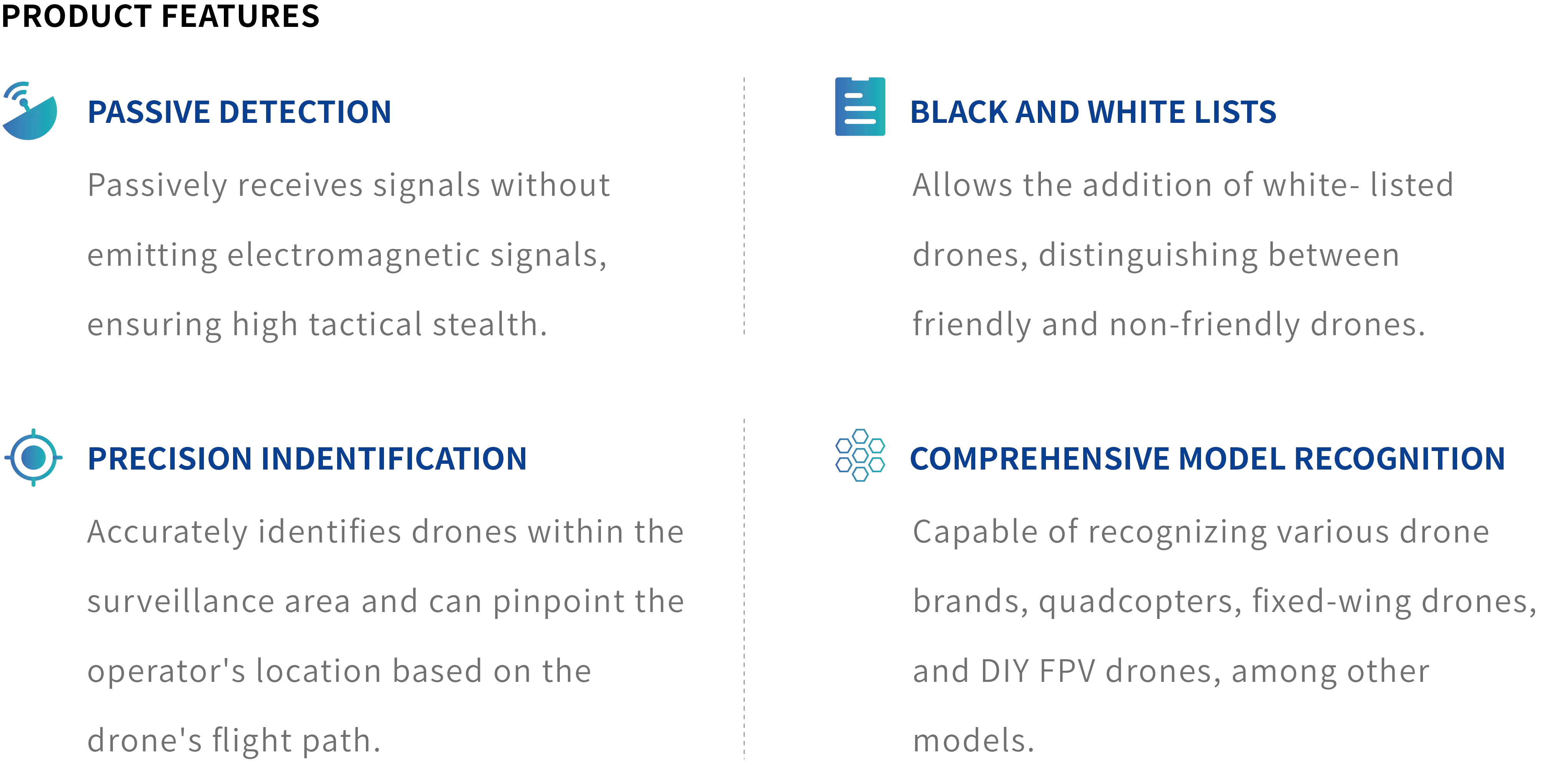

The drone RF detector can search and find the drone radio signals in the full spectrum range of 300MHz to 6000MHz, monitoring at the radius of 5KM. According to the detected location and frequency, it can output the angle, distance, and frequency bands. By working with jamming unit from our anti-drone solution software platform, anti-drone can be taken to the place.

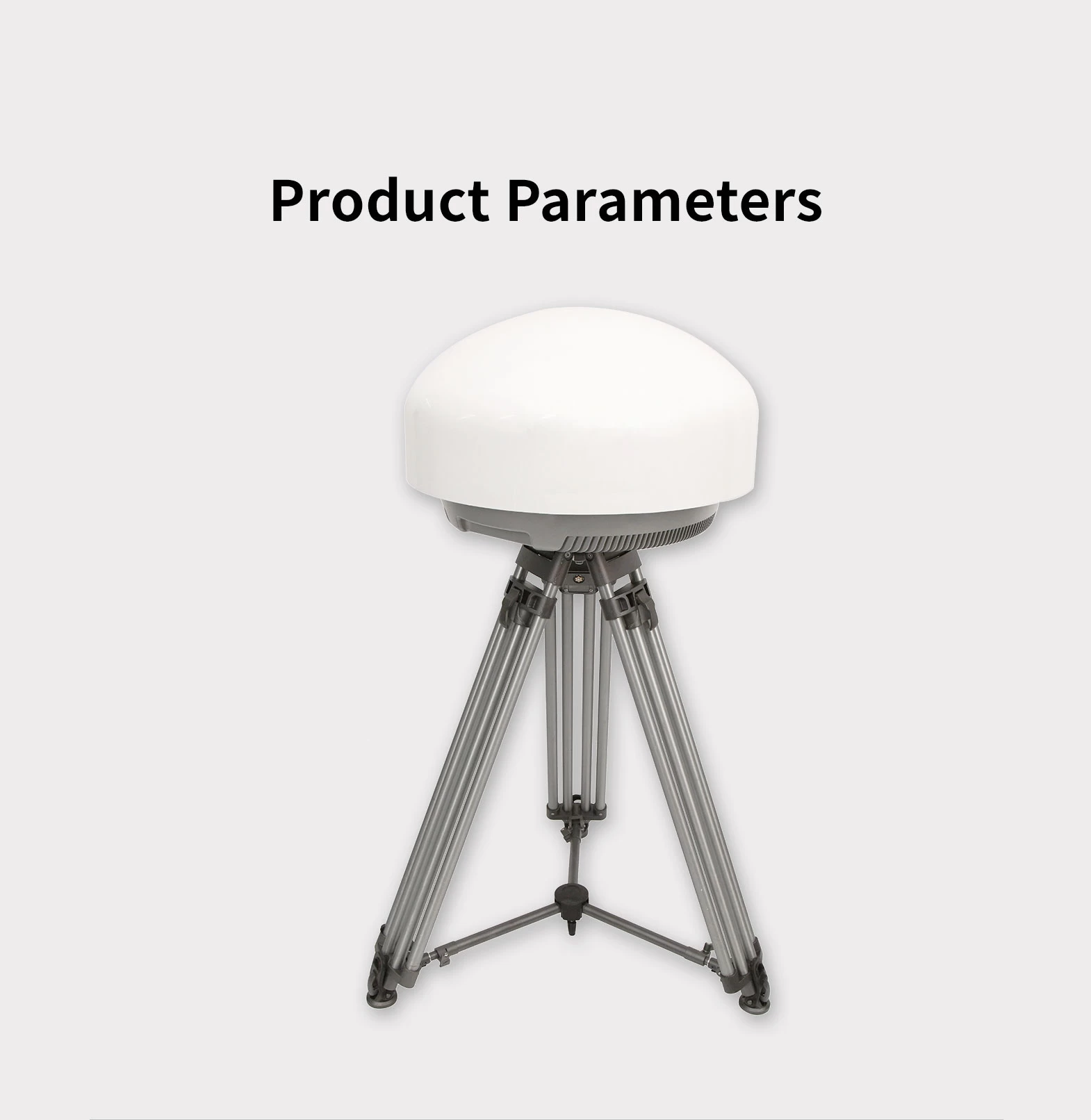

ModelTXPP5000
Detection receiver frequency range300MHz~6000MHz
Detect angleHorizontal angle 360°
Detect range≥5km
Azlmuth accuracy of detection≤3°(RMS)
Location accuracy±5m
Response time≤2s
Continuously working time24H*7
Communication modeRj45 interface TCP / IP protocol
Power Consumption≤90w
Size600x600x400mm
Weight≤25kg (Tripod Excluded)
Working temperature-40°~+70°
Storage temperature-45°~+70°
IP RatingIP 66



Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.





Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
