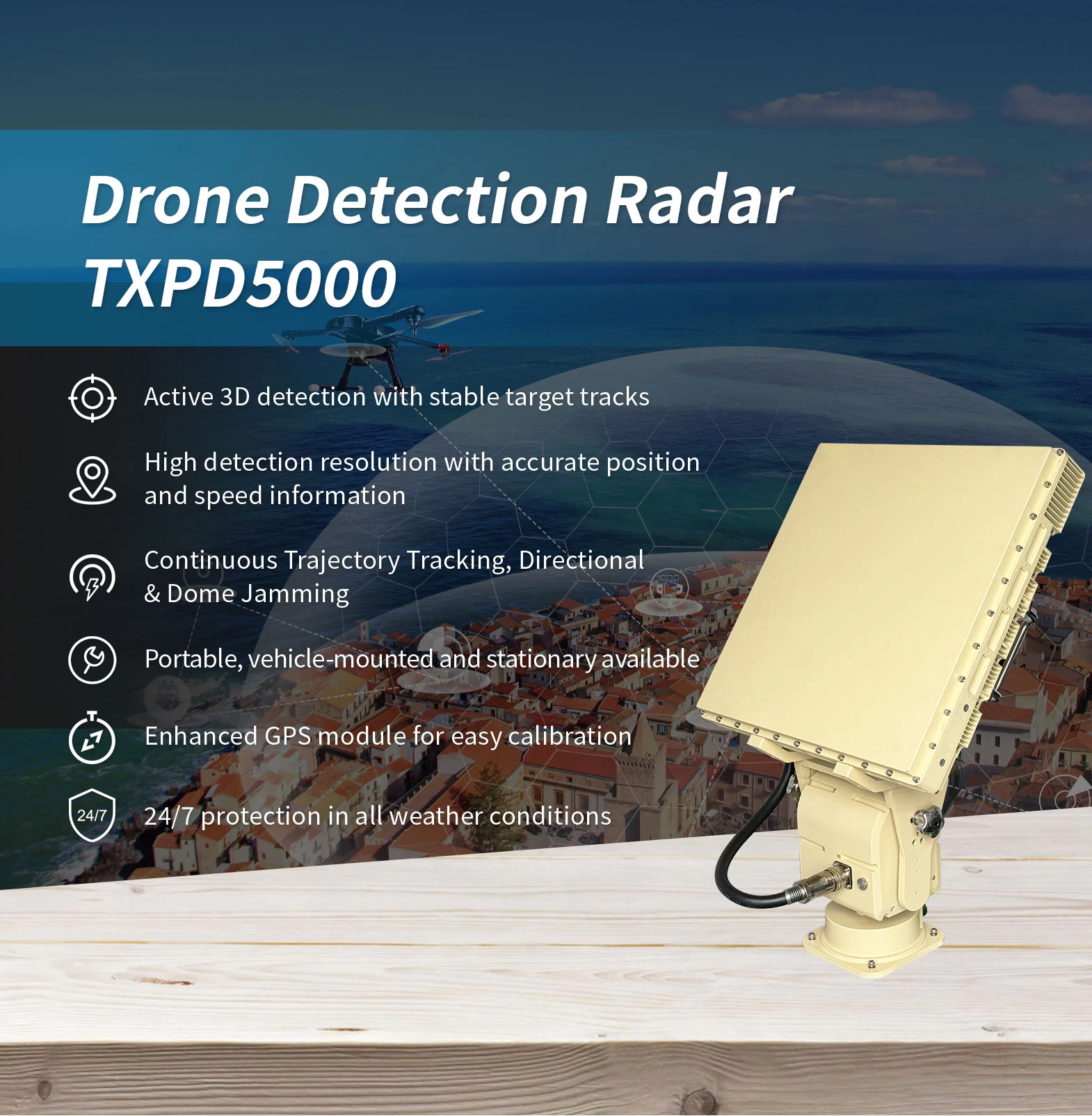

Drone Detection Radar TXPD5000

ModelTXPD5000
Radar TypeFMCW
Frequency BandK Band (ISM24GHz)
Transmission Power≤32W
Bandwidth100MHz
Scan TypeMechanical Scanning
Scan Speed120°/s
Detection Range5KM RCS=0.01 m²
Range Resolution±1.5m RCS=0.01 m²
Effective Field of View (Horizontal)0° ~ 360°
Effective Field of View (Vertical)60°
Elevation Beam30° RCS=0.01 m²
Detectable Target Velocity≤100m/s
Simultaneous Tracking100
System Power100-240V AC / 48V DC
Power Consumption≤400W
IP RatingIP65
Operating Temperature-25 ~ 60℃
External Dimension of Radar Units780*500*350 mm
Weight of the Radar Unit (Approx.)≤25kg
Communication InterfaceRJ45 and RS485
GPS PositioningSupported
  • Product Details

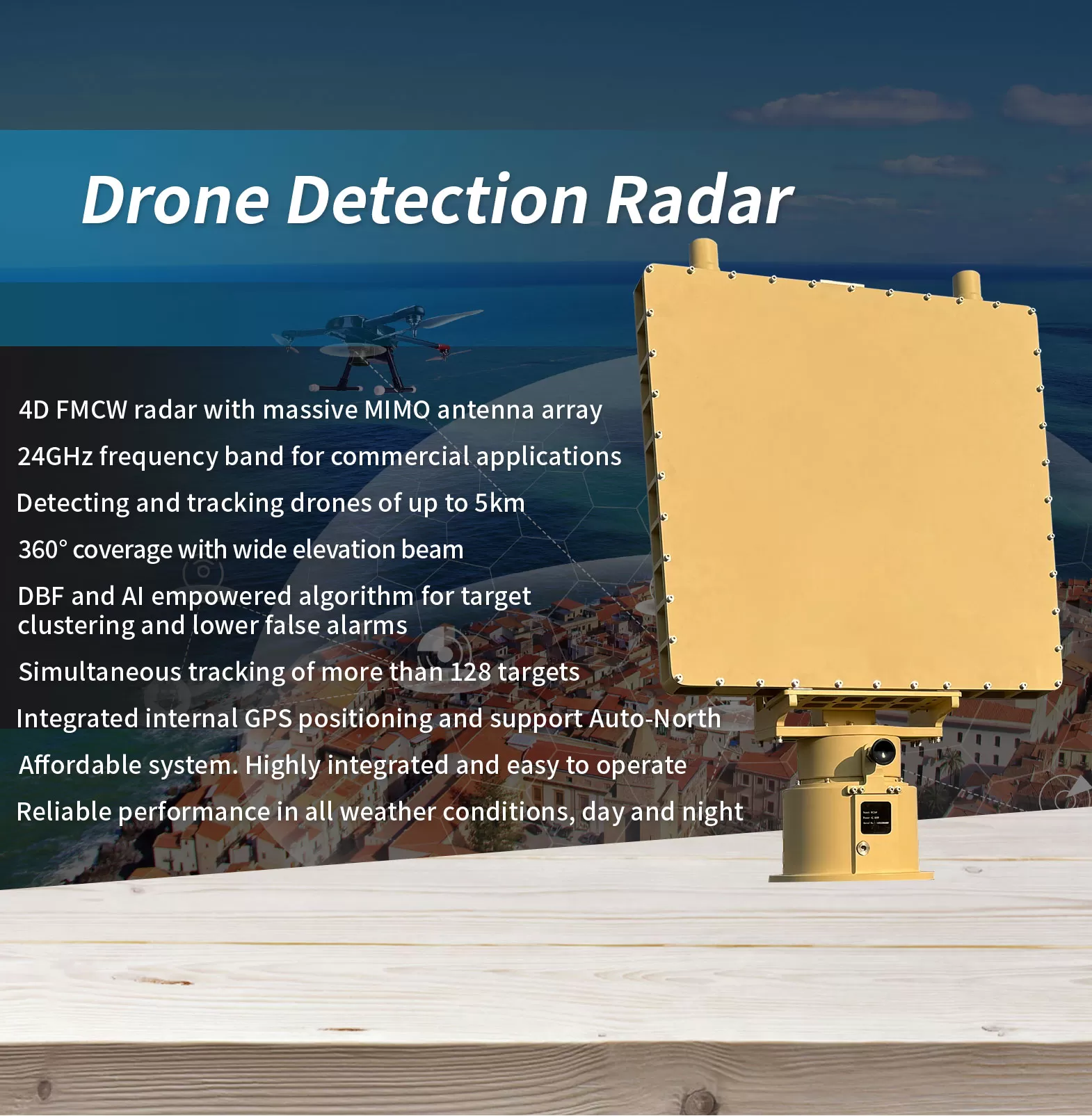

The TXPD3000/5000 drone detection radar is a 3D active radar that is cost effective with great performance, supporting 360° continuous detection of mini-UAVs up to 3-5 km. It has the capability to identify up to 50 targets simultaneously with distance, azimuth, height, and speed data. It is perfect for anti-UAV application for national confidential facilities, airports, critical infrastructures, oil refineries and public events etc.







ModelTXPD5000
Radar TypeFMCW
Frequency BandK Band (ISM24GHz)
Transmission Power≤32W
Bandwidth100MHz
Scan TypeMechanical Scanning
Scan Speed120°/s
Detection Range5KM RCS=0.01 m²
Range Resolution±1.5m RCS=0.01 m²
Effective Field of View (Horizontal)0° ~ 360°
Effective Field of View (Vertical)60°
Elevation Beam30° RCS=0.01 m²
Detectable Target Velocity≤100m/s
Simultaneous Tracking100
System Power100-240V AC / 48V DC
Power Consumption≤400W
IP RatingIP65
Operating Temperature-25 ~ 60℃
External Dimension of Radar Units780*500*350 mm
Weight of the Radar Unit (Approx.)≤25kg
Communication InterfaceRJ45 and RS485
GPS PositioningSupported



Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.





Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
