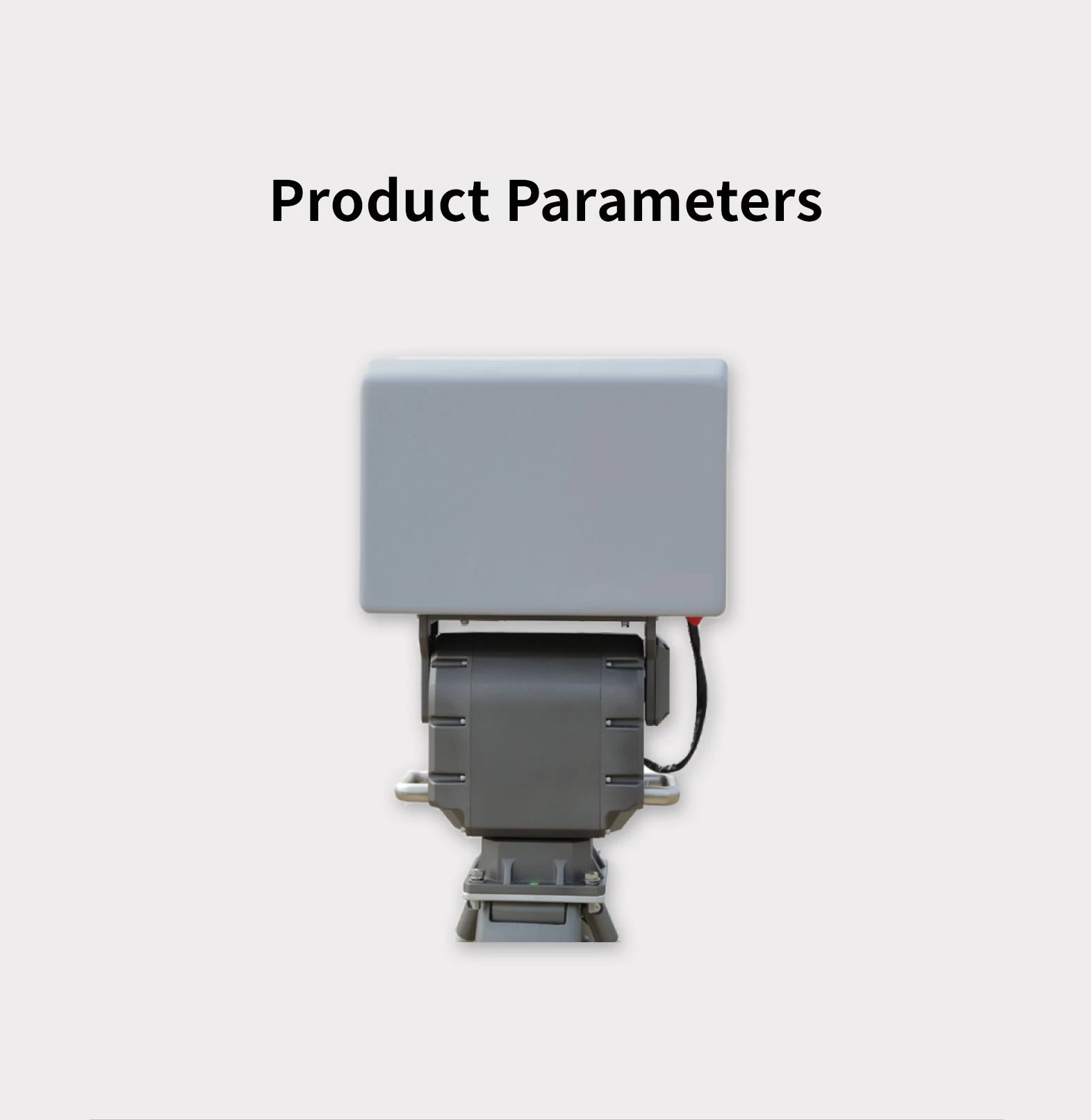

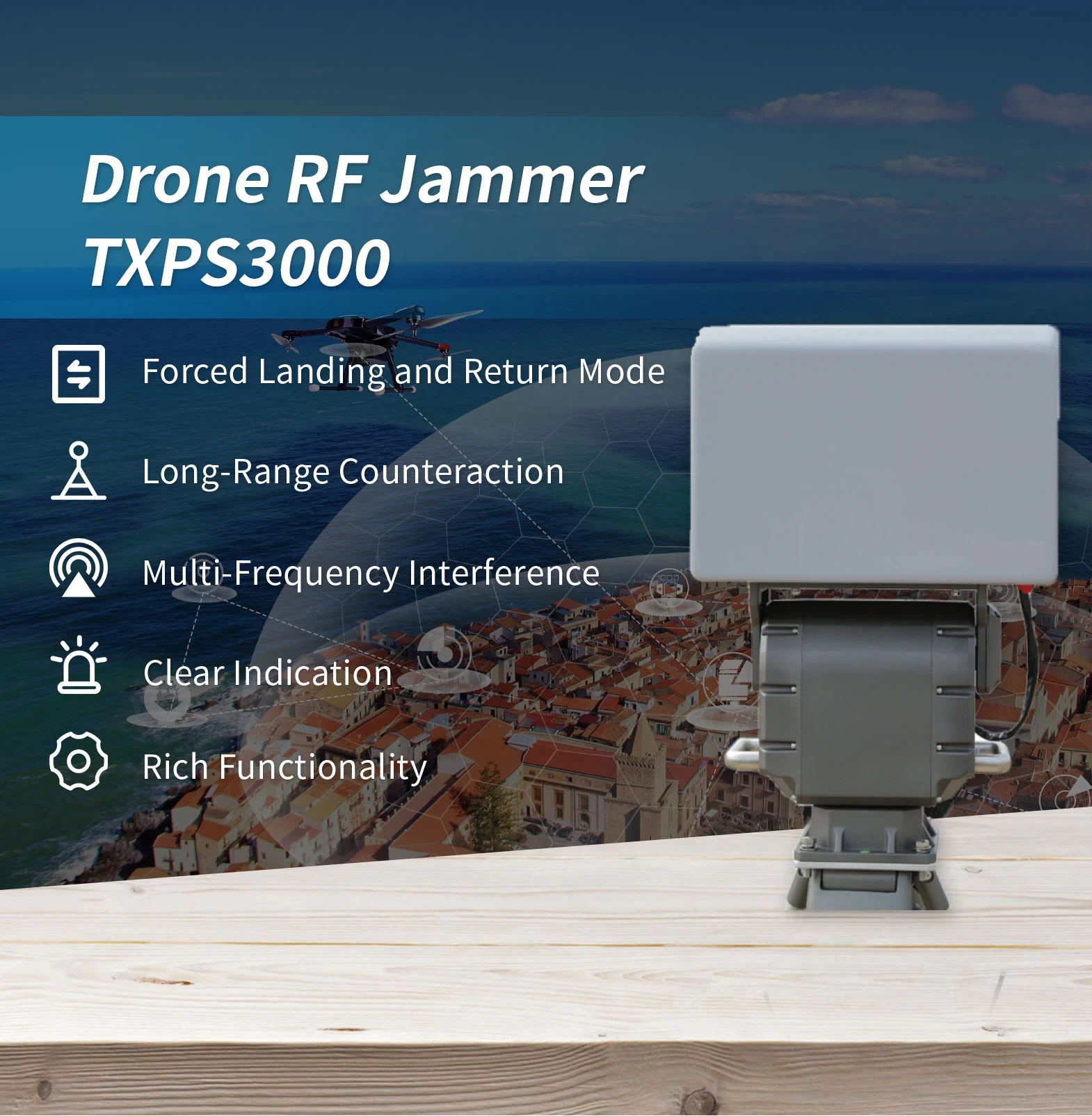

Drone RF Jammer TXPS3000

ModelTXPS3000
Operating Frequencies Bands400MHz/800MHz/900MHz/

1.2GHz/1.4GHz/2.4GHz/

5.1GHz, 5.4GHz, 5.8GHz

Interference ModesExpel mode and forced landing mode
Interference Range≥3km
Interference Response Time<5s
Continuously Working Time24h
Gimbal Rotation AngleHorizontal 360° Vertical 0~60°
Gimbal Rotation SpeedHorizontal 0.02° to 20s, Pitch 0.02° to 10°/s
Communication InterfaceRJ45/RS485
Total Power Consumption≤1000W
Heat DissipationNatural cooling + fan.
Operating Temperature-40°C ~ +60°C
Weight≤30kg
Protection LevelIP66
Power SupplyAC 220V/110V
Size600x600x400mm
  • Product Details

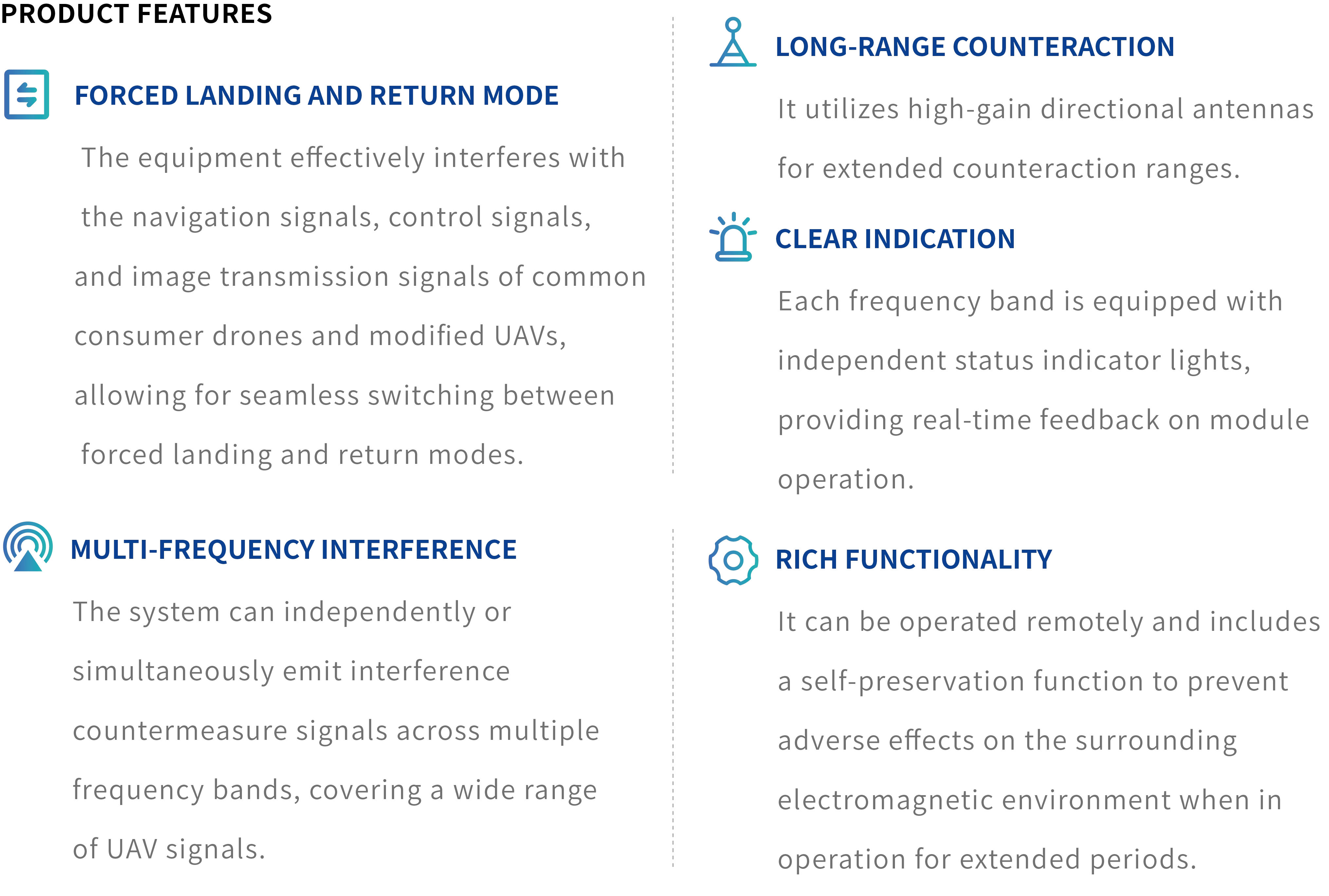

The RF jammer transmits high-power interference signals in omnidirectional or directional manner, and implements interference to the target drone, forming an electronic fence circle, blocking the communication between the drone and the remote, losing the satellite positioning information and control. According to the different settings of the drone, forcing return, crash landing or hovering can be realized. The equipment can achieve 360°defense with working with directional detection. It is widely used in army, court, airport, embassy, border, petrochemical places, substations and other industries. Also it can be used for commercial events, such as sports competition, concert, exhibitions, etc.









ModelTXPS3000
Operating Frequencies Bands400MHz/800MHz/900MHz/

1.2GHz/1.4GHz/2.4GHz/

5.1GHz, 5.4GHz, 5.8GHz

Interference ModesExpel mode and forced landing mode
Interference Range≥3km
Interference Response Time<5s
Continuously Working Time24h
Gimbal Rotation AngleHorizontal 360° Vertical 0~60°
Gimbal Rotation SpeedHorizontal 0.02° to 20s, Pitch 0.02° to 10°/s
Communication InterfaceRJ45/RS485
Total Power Consumption≤1000W
Heat DissipationNatural cooling + fan.
Operating Temperature-40°C ~ +60°C
Weight≤30kg
Protection LevelIP66
Power SupplyAC 220V/110V
Size600x600x400mm



Anti-UAV Defense System is composed of front-end equipments such as detection radar, RF detector, E/O tracking camera, RF jamming or spoofing device and UAV control platform software. When the droneenters the defense zone, the detection unit outputs accurate position information through active distance, angle, speed and height. On entering the warning zone, the system will determine independently and start the jamming device to interfere the drone communication, so as to make the drone returning or landing. The system supports multi devices and multi zones management and can realize 7*24 all-weather monitoring and protection against drone invasion.





Anti-UAV Defense System consists of radar or RF detection unit, EO tracking unit and jamming unit. The system integrates target detection, tracking & recognition, command & control on jamming, multi functions in one. Based on different application scenarios, the system can be flexibly deployed into an optimal solution by choosing different detection unit and jamming device. AUDS can be fixed installation, vehicle mobile mounted or portable. By fixed installation type, AUDS is widely used in high level security protection site, vehicle mounted type is normally used for routine patrol or more, and portable type is used a lot for temporary prevention & control in key conference, sport events, concert etc.
